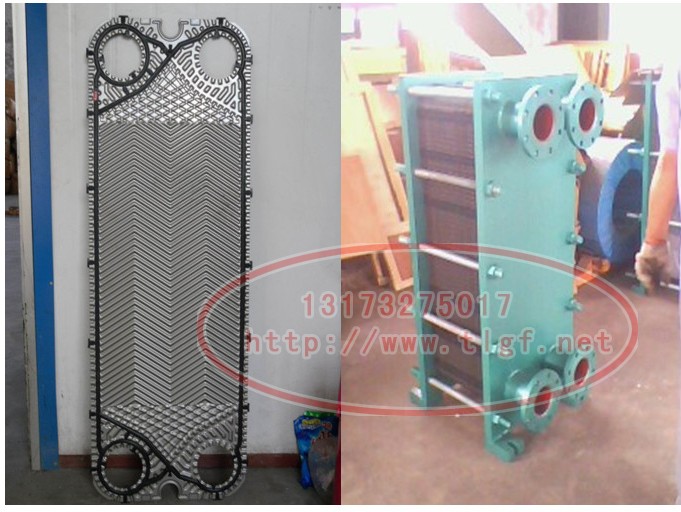

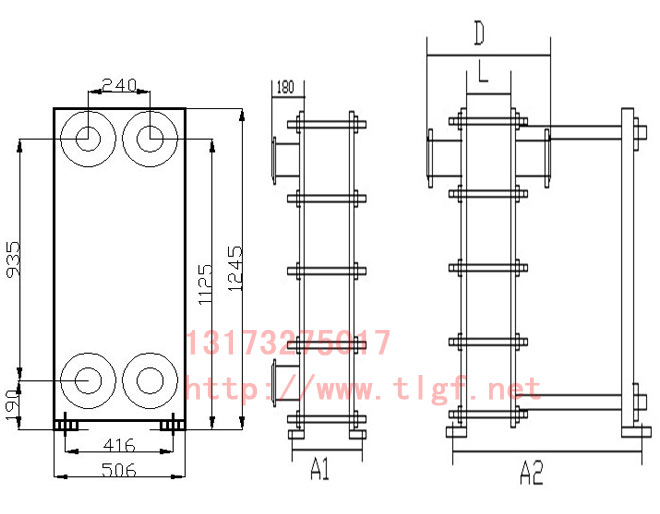

板片外型尺寸
(outside size of plate)
|
1097*404*0.7
|
法向波纹节距mm
(nornal ripple pitch)
|
12.73
|
|
有效换热面积m2
(effective heat exchanging area)
|
0.358
|
流道宽度mm
(width of flow passage)
|
360
|
|
单片重量Kg
(weigh of one plate)
|
2.0
|
平均板间距mm
(average space between plates)
|
3.4
|
|
角孔尺寸mm
(diameter of angle hole)
|
φ100
|
平均流道截面积m2
(average crossed-sectional area)
|
0.001224
|
|
法兰通径mm
(whole length of flange)
|
DN100
|
平均当量直径mm
(average equivalent diameter)
|
6.8
|
|
最大处理量m3/h
(maximum disposal volume)
|
170
|
波纹高度mm
(height of ripple)
|
3.4
|
|
设计工作压力Mpa
(working pressure)
|
1.0
|
工作温度℃
(working temperature)
|
≤150
|
|
波纹形式
(form of ripple)
|
等腰三角形
(isosceles triangle)
|
板片材质
(material of plate)
|
304 316及各种特殊材料
|
